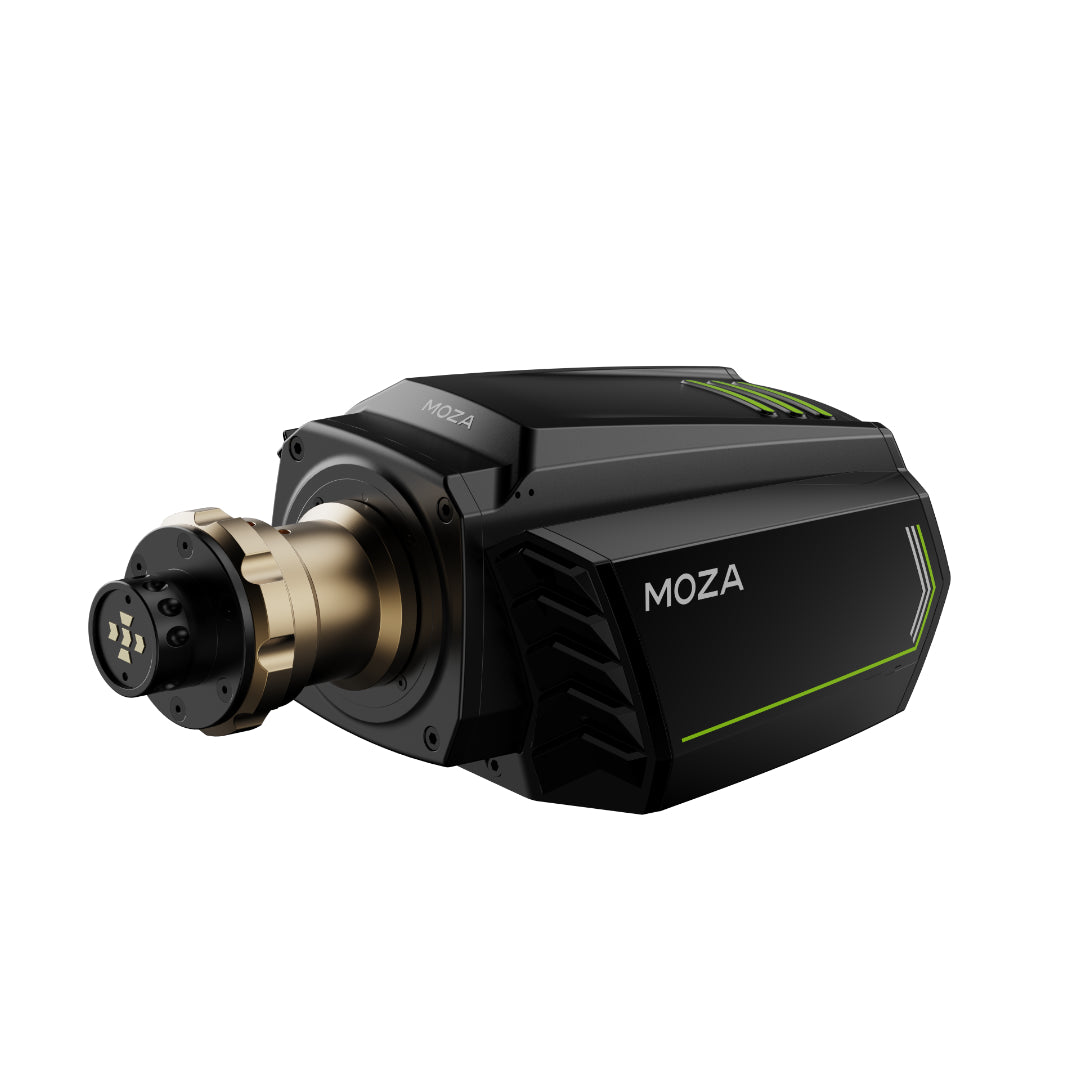

Moza Racing R16 Direct Drive Steering System

$999.00
per

***IF PRODUCT SHOWS "PRE-ORDER" IT WILL SHIP WITHIN 2-4 WEEKS***

16 N·m Direct Drive Torque from an Industrial-grade Motor

The Moza Racing R16 has 16Nm of torque on tap. The R16 can lay down an ultra-wide torque range that accurately reproduces the dynamic steering characteristics of top racing cars from F1 to IndyCar. Feel the road through the steering wheel.

*Only available in Black - Orange is special order

Specs:

Platform PC
Driving type Direct Drive
Maximum Turning Angle Limitless
Cover Aluminum
Color Black
Maximum Torque 16 N·m
Size 13 Inch
Maximum Power 360W
Input voltage 220V AC→36V DC
Encoder Resolution 262144 ppr
USB Refresh Rate 1000Hz
Indicator YES
Quick Release YES
Interface Power Supply, Data, General Interface
Accessories Instructions,Power Supply,USB Cable,Warranty Card,Screw
External Devices Adapter Option
Mounting 4-Hole Pattern on the Bottom, Side Mounting Support with Special BRKT
Mounting Bracket Bottom Angle Adjustment Bracket/Side Fixing Bracket
Table Clamp Optional
Side Mounting YES
Emergency Stop Option
L x W x H 327mm x 170mm x 130mm
Mass(ALL) 8.9kg
APP Function YES
Shifting Indicator Light YES



GS (Formula) Wheel Specs:

Grip Material Alcantara® made in Italy
Frame and Front Plate Material Forged carbon fibre
Shifter Paddle Material  3 mm-thick forged carbon fibre
Size 300mm GT standard wheel
Magnetic Shifter Paddles 2
Dual Clutch Paddles 2
Luminous Mechanical Keys 10
Thumb Knobs (pressable) 2
Band Knobs 5
LED Lamp Beads RGB 10
LED Colors 7 for customization
Intelligent Telemetry Yes
Light setting in MOZA Pit House Yes
Knock-Down (K/D) Method D1 spec quick release
Transmission Mode Wireless
Paddle Sensor Contactless photoelectric sensor
Dual Clutch Shifter Paddle Modes Synthesis axis/Independent axis/button

RS (Round or D Shape) Wheel Specs:

Grip Material (D SHAPE) Italy Imported Alcantara/ (ROUND) Nappa First Layer Leather
Frame Material Brushed Aluminum Alloy
Panel Material Forged carbon fibre
Shifter Paddle Material  3 mm-thick forged carbon fibre
Size 330mm GT Round or D Shape wheel
Magnetic Shifter Paddles 2
Dual Clutch Paddles 2
Mechanical Keyboard Texture Buttons 10
20-segment Knob (Can Be Pressed) 2
Universal Rocker (Can Be Pressed) 5
Racing Horn 1
LED Lamp Beads RGB 10
LED Colors Color customization
Intelligent Telemetry Yes
Light setting in MOZA Pit House Yes
Quick release
D1 spec quick release
Transmission Mode Wireless
Paddle Sensor Contactless photoelectric sensor
Dual Clutch Shifter Paddle Modes Synthesis axis/Independent axis/button



Review:

Shaun Cole of The SimPit
